20mm High Strength Anti-Torsion Steel Wire Rope for Transmission Line Tension Wiring

Name: 20mm High Strength AntiTorsion Steel Wire Rope for Transmission Line Tension Wiring
Brand: XINYA
Price: 1 USD

Quality 20mm High Strength Anti-Torsion Steel Wire Rope for Transmission Line Tension Wiring wholesale

Brand Name : XINYA

Model Number : -

Certification : ISO

Place of Origin : Jiangsu, China

MOQ : 1000 meters

Price : get latest price

Payment Terms : L/C,T/T,

Delivery Time : 10-15 days after payment

Packaging Details : pack with cable reel

Steel Grade : steel wire rope

Wire Gauge : 20(mm)

Type : Galvanized

Breaking Force : 309KN

Manufacturing Experince : over 20 year

Item : 20mm High Strength Anti-Torsion Steel Wire Rope for Transmission Line Tension Wiring

Contact Now

20mm High Strength Anti-Torsion Steel Wire Rope for Transmission Line Tension Wiring

Anti twisting galvanized pilot wire rope is used for pulling conductors or OPGW, earth wire in the overhead transmission line construction.

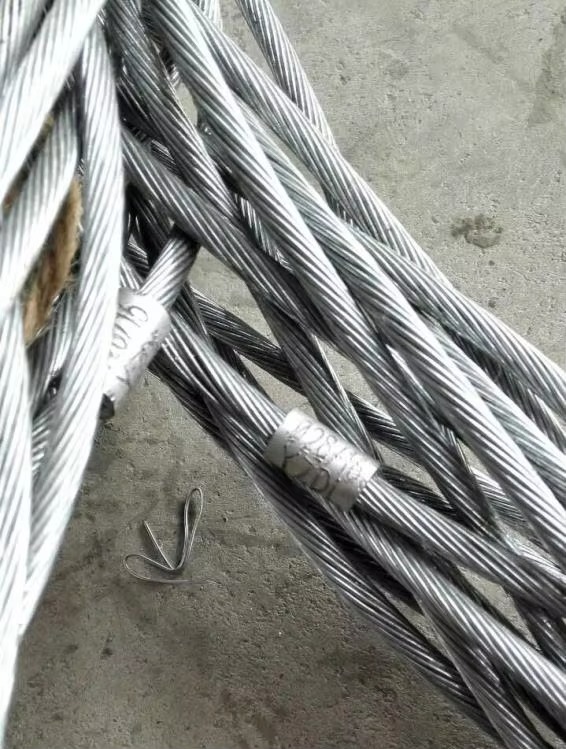

Anti twisting steel rope is specially braided from high strength, galvanized steel wire. The braided steel strand has high flexibility, complete stability to rotation under tension force.

It can homogeneously distribute the pressure between the elementary wires. The special rope can increase efficiency during the overhead transmission line stringing work.

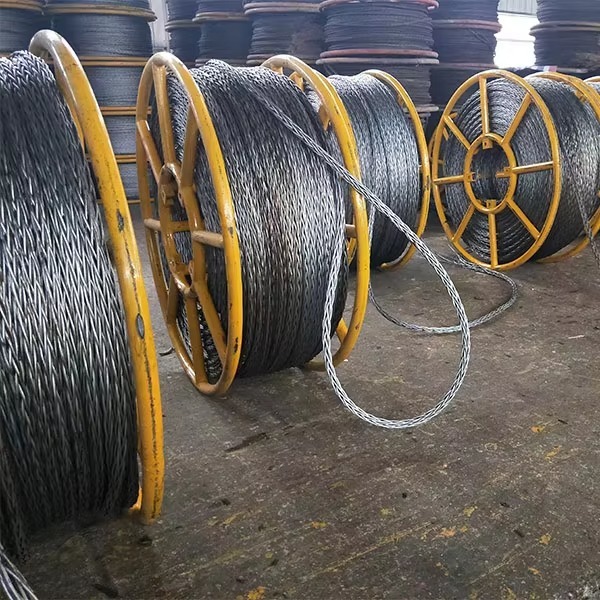

The rope is packed in steel drum, which can be installed on the reel winder of conductor puller directly.

Specification

Hexagonal section twelve strands anti-twist steel wire rope
Model	Diameter(mm)	Femoral diameter(mm)	Unit weight(kg/m)	Normal tensile strength(Mpa)
				1960
				Minimum pull force(KN)
YL9-12*19W	9	2.0	0.26	55
YL11-12*19W	11	2.5	0.40	88
YL13-12*19W	13	3.0	0.57	125
YL15-12*19W	15	3.5	0.79	170
YL18-12*19W	18	4.0	1.03	207
YL20-12*29Fi	20	4.5	1.30	270
YL22-12*29Fi	22	4.8	1.48	330
YL24-12*29Fi	24	5.2	1.80	373

Hexagonal section eighteen strands anti-twist steel wire rope
Model	Diameter(mm)	Femoral diameter(mm)	Unit weight(kg/m)	Normal tensile strength(Mpa)
				1960
				Minimum pull force(KN)
YL15-18*19W	15	3.0	0.88	185
YL18-18*19W	18	3.5	1.19	252
YL20-18*19W	20	4.0	1.54	309
YL22-18*29Fi	22	4.2	1.61	368
YL24-18*29Fi	24	4.5	1.94	420
YL26-18*29Fi	26	4.8	2.22	490
YL28-18*29Fi	28	5.2	2.70	580
YL30-18*29Fi	30	5.4	2.90	615
YL32-18*29Fi	32	6.0	3.46	765

20mm High Strength Anti-Torsion Steel Wire Rope for Transmission Line Tension Wiring

20mm High Strength Anti-Torsion Steel Wire Rope for Transmission Line Tension Wiring Images
