660 Series Stringing Conductor Pulley Blocks Large Diameter OEM Customizable Timing Type

Name: 660 Series Stringing Conductor Pulley Blocks Large Diameter OEM Customizable Timing Type
Brand: XINYA
Price: 1 USD

Quality 660 Series Stringing Conductor Pulley Blocks Large Diameter OEM Customizable Timing Type wholesale

Brand Name : XINYA

Model Number : SHSN-660X100

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C,T/T,

Delivery Time : 25-35 days

Packaging Details : 1000 sets per month

Application : Stringing Pulley During Transmission Line

Wheel Size : 660mm diameter/100mm width

Usage : stringing

Type : stringing pulley block

Material : Nylon

selling point : large diameter

Conductor size (mm2) : ≤500

Rated load (kN) : 40

Weight (kg) : 85

Product Name : 660 Series Stringing Conductor Pulley Blocks Large Diameter

Contact Now

660 Series Stringing Conductor Pulley Blocks Large Diameter OEM Customizable Timing Type

Model 660 series

Note: maximum suitable condctor LGJ500. The table below is 100mm wheel width and the other dimensions can be customizer according to customer's requirement.

Model	No. of wheel	Rated load(KN)	Weight(kg)	Outside weight diameter(mm)	Root diameter(mm)	Features
SHD660	1	30	40	660	560	MC nylon sheave
SHS660	3	40	70	660	560
SHW660	5	70	103	660	560
SHW66ON	5	70	140	660	560	Middle: cast steel sheave
SHQ660	7	100	165	660	560	Mcnylon sheave, middle sheavewidth 110mm
SHQ660N	7	100	203	660	560	Middle: cast steel sheave

660 Series Stringing Conductor Pulley Blocks Large Diameter OEM Customizable Timing Type

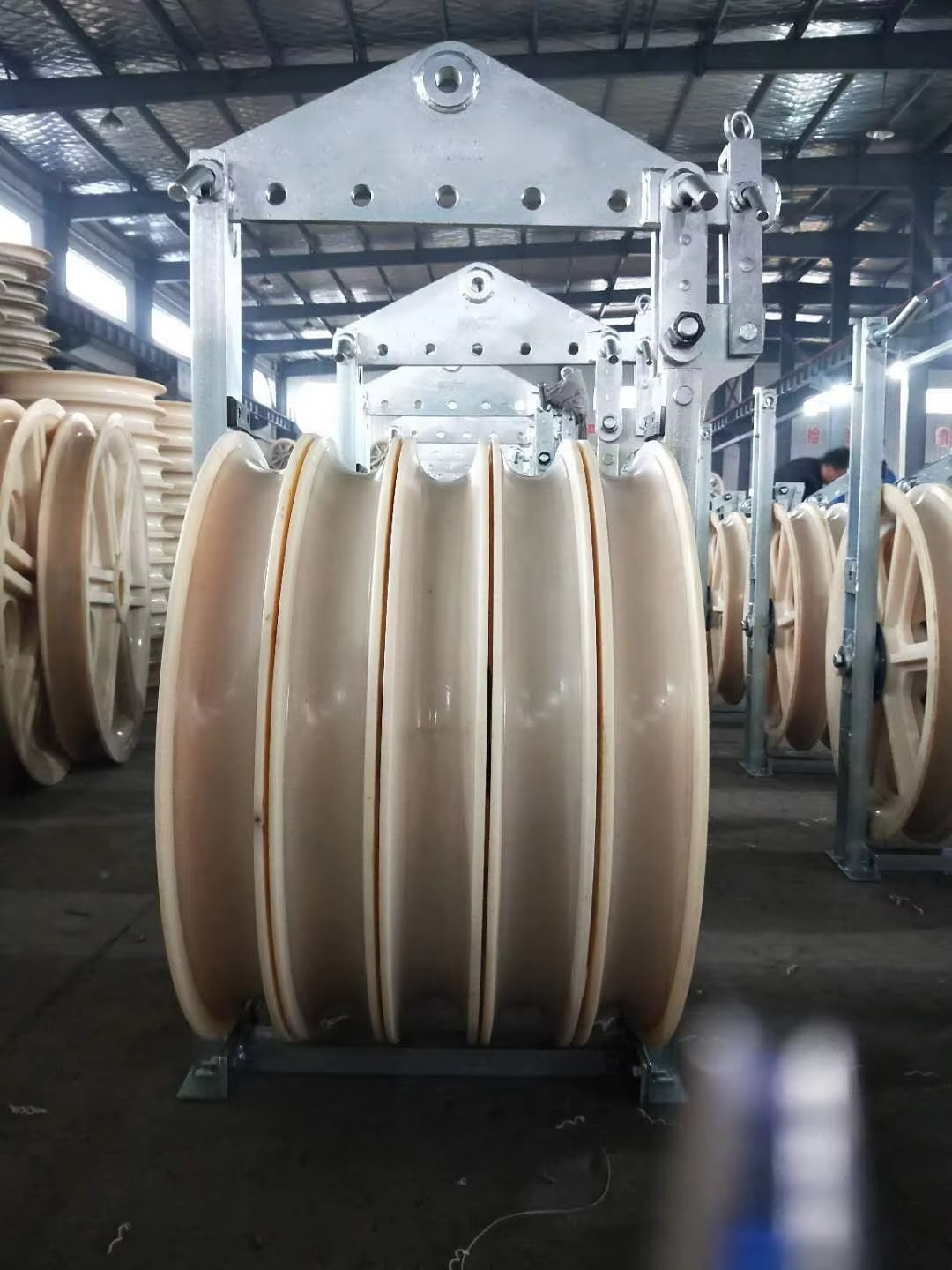

660 Series Stringing Conductor Pulley Blocks Large Diameter OEM Customizable Timing Type Images
