1040 Series Nylon Stringing Pulley Block Customizable Timing Transmission Line Stringing Tools OEM Support

  • 1
  • 2

Brand Name : XINYA

Model Number : SH3Z

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Delivery Time : 10-20 days

Packaging Details : 1000 sets per month

selling point : large diameter

Wheel diameter : 1040

Weight : 20-220kg

Application : Power Line Construction

Material : Steel

Product Name : 1040 Series Nylon Stringing Pulley Block Timing Transmission Line Stringing Tools

Surface Treatment : Galvanized

Type : Stringing Tools

Contact Now

1040 Series Nylon Stringing Pulley Block Customizable Timing Transmission Line Stringing Tools OEM Support


Specification

Model 508 series

Note: maximum suitable condctor LGJ400. The table below is 100mm wheel width and the other dimensions can be customizeraccording to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD508
1
20
25
508
408

MC nylon sheave
SHS508
3
40
46
508
408
SHW508
5
60
70
508
408

Model 660 series

Note: maximum suitable condctor LGJ500. The table below is 100mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD660
1
30
40
660
560

MC nylon sheave
SHS660
3
40
70
660
560
SHW660
5
70
103
660
560
SHW66ON
5
70
140
660
560
Middle: cast steel sheave
SHQ660
7
100
165
660
560
Mcnylon sheave, middle sheavewidth 110mm
SHQ660N
7
100
203
660
560
Middle: cast steel sheave

Model 822 series

Note: maximum suitable condctor LGJ630. The table below is 110mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD822
1
40
60
822
710



MC nylon sheave
SHS822
3
80
120
822
710
SHW822
5
100
190
822
710
SHQ822
7
150
236
822
710
SHW822N
5
100
240
822
710

Middle: cast steel sheave
SHQ822N
7
150
272
822
710
SHJ822
9
200
420
822
710

Model 916 series

Note: maximum suitable condctor LGJ800. The table below is 110mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD916
1
50
70
916
800



MC nylon sheave
SHS916
3
80
132
916
800
SHW916
5
120
198
916
800
SHQ916
7
180
270
916
800
SHW916N
5
120
260
916
800

Middle: cast steel sheave
SHQ822N
7
180
321
916
800

Model 1040 series

Note: maximum suitable condctor LGJ1000. The table below is 125mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD1040
1
60
85
1040
900



MC nylon sheave
SHS1040
3
120
190
1040
900
SHW1040
5
150
340
1040
900
SHQ1040
7
200
390
1040
900
SHJ1040
9
300
789
1040
900
SHE1040
11
300
970
1040
900
SHW1040N
5
150
395
1040
900
Middle: cast steel sheave
SHQ1040N
7
200
463
1040
900

Model 1160 series

Note: maximum suitable condctor LGJ1250. The table below is 150mm wheel width and the other dimensions can be customizer according to customer's requirement.
Model
No. of wheel
Rated load(KN)
Weight(kg)
Outside weight diameter(mm)
Root diameter(mm)
Features
SHD1160
1
50
112
1160
1000

MC nylon sheave
SHS1160
3
120
245
1160
1000
SHS1160N
3
120
355
1160
1000
Middle: cast steel sheave

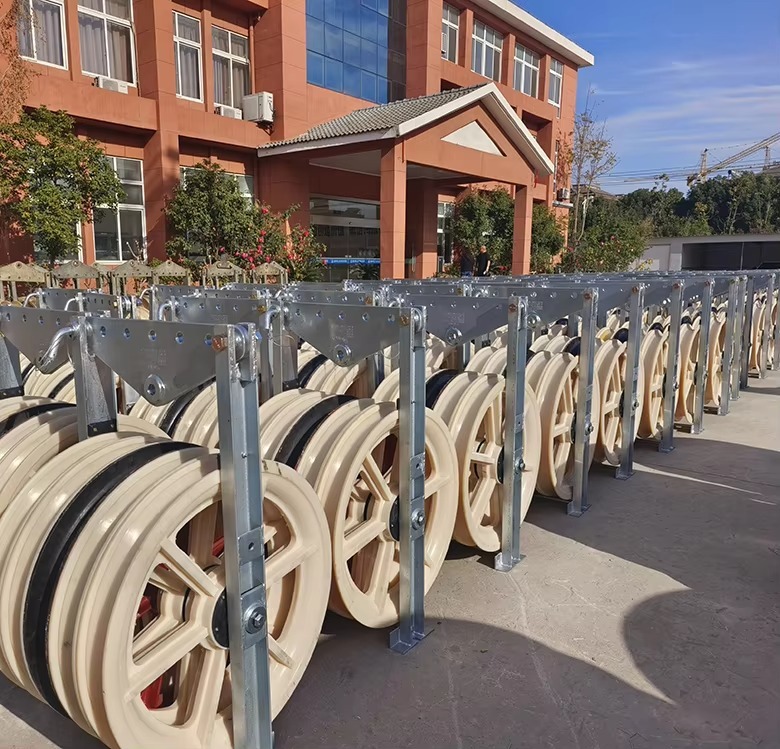

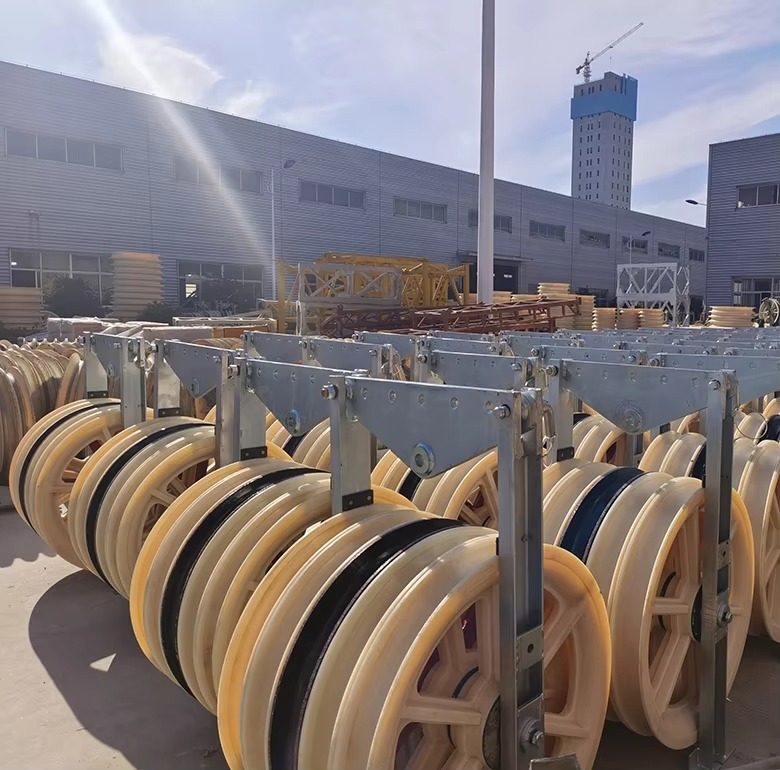

1040 Series Nylon Stringing Pulley Block Customizable Timing Transmission Line Stringing Tools OEM Support
